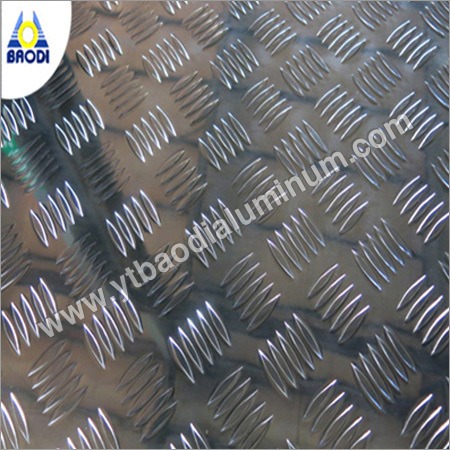

Aluminum Checkered Plate

Aluminum Checkered Plate
Aluminum Checkered Plate
Product Code : 15
Product Description

Incepted in the year 1993, we have been engrossed in manufacturing, exporting and supplying Aluminum Checkered Plate. Ideal for flooring in airplane, elevators, rail and buses, this plate is highly demanded among the clients. The provided plate is manufactured under the observation of our adroit professionals using high grade aluminum and sophisticated techniques in tandem with industrial standards. Available in various thicknesses, lengths and widths, the offered Aluminum Checkered Plate can be purchased from us at reasonable prices.


Features:

  • Rust resistance
  • Slip resistant surface
  • Weather resistance
  • High durability

Applications of Aluminum Checkered Plate :

Sign board, Advertising board, Building decoration, Car body, Cooking utensil, Lamp holder, Fan leaf, Electrical part, Chemical instrument, Machined part, Deep-drawn or spinned part, Welded part, Heat exchanger, Clock surface, Decoration, Reflective instrument etc.

Technical Details :

Name

1000 series Aluminum Chequered Plate

Alloy

1050, 1060, 1100, 1200 etc.

Temper

O, H12, H22, H14, H24, H26, H18 etc.

Thickness

1.5-12mm

Width

Up to 1500mm

Length

Up to 6000mm

Type

big five bars, small five bars, diamond


Alloy

Chemical Component %

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

Others

Al

Single

Total

1050

0.25

0.4

0.05

0.05

0.05

\

\

0.05

0.03

0.03

\

99.50

1060

0.25

0.35

0.05

0.03

0.03

\

\

0.05

0.03

0.03

\

99.60

1100

0.95

0.05-0.2

0.05

\

\

\

0.1

\

0.05

0.15

99.00

1200

1.00

0.05

0.05

\

\

\

0.1

0.05

0.05

0.15

99.00

Alloy Grade Temper Thickness (mm) Width (mm) Length (mm)
1050,1060,1100,1200,3003,5052,6061 HH14,24,H112,H18,H28 1.0-12 1500 6000



Specification

Name: 3000 series Aluminum Chequered Plate

Alloy: 3003 etc.

Temper: O, H12, H22, H32, H14, H24, H26, H18 etc.

Thickness: 1.5-12mm

Width: Up to 1500mm

Length: Up to 6000mm

Type: big five bars, small five bars, diamond

Feature

Machinability: Having good machinability for the aluminum alloys,.

Forming: Conventional cold working or hot working.

Welding: Accomplished by conventional welding methods.

Heat Treatment: Non-heat treatable alloy.

Forging: Hot forged in the range of 950 F - 500 F.

Hot Working: The hot working range (as for forging) is 950 F - 500 F. In that range the alloy is easily hot worked.

Cold Working: Cold worked by all conventional methods.

Annealing: Annealing, during or following cold working, is done at 775 F, allowing adequate time for thorough heating, followed by air cooling.

Hardening: Hardens as a result of cold working only.

Application

Chemical equipment, ductwork, and in general sheet metal work, ice cube trays, garage doors, awning slats, refrigerator panels, gas lines, gasoline tanks, cooking utensils, pressure vessels, builder's hardware, eyelet stock, heat exchangers, drawn and spun parts, and storage tanks etc.

Alloy

Chemical Component

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

others

Al

single

total

3003

0.6

0.7

0.05-0.20

1.0-1.5

\

\

\

0.1

\

0.05

0.15

remainder
