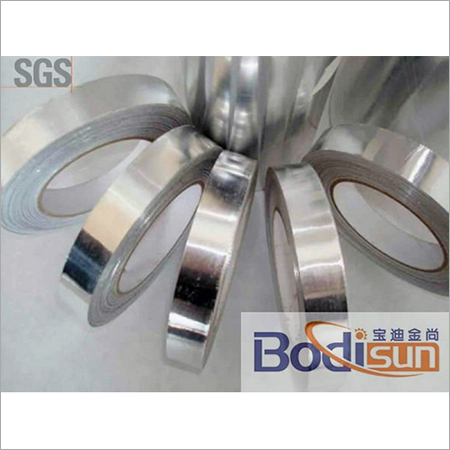

Narrow Aluminum Strip

Narrow Aluminum Strip
Narrow Aluminum Strip
Product Code : 16
Product Description

Having rich experience of more than two decades, we are engrossed in manufacturing, exporting and supplying top-in-class Narrow Aluminum Strip. The offered strip is manufactured under the strict observation of our ingenious professionals using high grade aluminum and modern techniques at our hi-tech production unit. This strip is extensively used for protecting chemical instrument, pressure vessels, ice cube trays, awning slats, gas lines and storage tanks against corrosion. Furthermore, the provided Narrow Aluminum Strip can be purchased from us at economical prices.


Features:

  • Uniform thickness
  • Perfect finish
  • High strength
  • Resistant to corrosion



Narrow Aluminum Strip

Product Description

We could produce slit aluminum coil in grade 3003 and 3105. Both of the two are anti rust material

1 Narrow aluminum strip
2 Alloy: 3003, 3105
3 Temper: H14-H24
4 Thickness range: 0.1mm-2.5mm
5 Width range: 10mm-800mm
6 Min order quantity: 1MT(1000kg)
7 Delivery lead time: 15-20 days
8 Packing: Wooden pallet, wooden box, veneer pallet, veneer box
9 Certificate: ISO9001
10 H. S. Code: 7606125900
11 Country of origin: China
12 Third party inspection: Acceptable
13 Surface: Clean and bright without oil stain or water stain.

Specification

Name: 3000 series aluminum sheet

Alloy: 3003, 3004, 3005, 3105 etc.

Temper: O, H12, H22, H32, H14, H24, H26, H18 etc.

Thickness: 0.25-200mm

Width: Up to 1800mm

Length: Up to 6000mm

Surface treatment: mill finished, anodized, embossed, PVC coated

Feature

Machinability: It is readily machined and is considered as having good machinability for the aluminum alloys,.

Forming: It is readily formed by either conventional cold working or hot working.

Welding: It is readily accomplished by means of conventional welding methods.

Heat Treatment: It is a non-heat treatable alloy.

Forging: It may be hot forged in the range of 950 F to 500 F.

Hot Working: The hot working range (as for forging) is 950 F to 500 F. In that range the alloy is easily hot worked.

Cold Working: It is readily cold worked by all conventional methods.

Annealing: Annealing, during or following cold working, is done at 775 F, allowing adequate time for thorough heating, followed by air cooling.

Hardening: Hardens as a result of cold working only.

Application

Chemical equipment, duct work, and in general sheet metal work, cooking utensils, pressure vessels, builder's hardware, eyelet stock, ice cube trays, garage doors, awning slats, refrigerator panels, gas lines, gasoline tanks, heat exchangers, drawn and spun parts, and storage tanks etc.

Alloy

Chemical Component %≤

Si

Fe

Cu

Mn

Mg

Cr

Ni

Zn

Ti

others

Al

single

total

3003

0.6

0.7

0.05-0.20

1.0-1.5

\

\

\

0.1

\

0.05

0.15

remainder

3004

0.3

0.7

0.25

1.0-1.5

0.8-1.3

\

\

0.25

\

0.05

0.15

remainder

3005

0.6

0.7

0.3

1.0-1.5

0.2-0.6

0.1

\

0.25

0.1

0.05

0.15

remainder

3105

0.6

0.7

0.3

0.3-0.8

0.2-0.8

0.2

\

0.4

0.1

0.05

0.15

remainder
